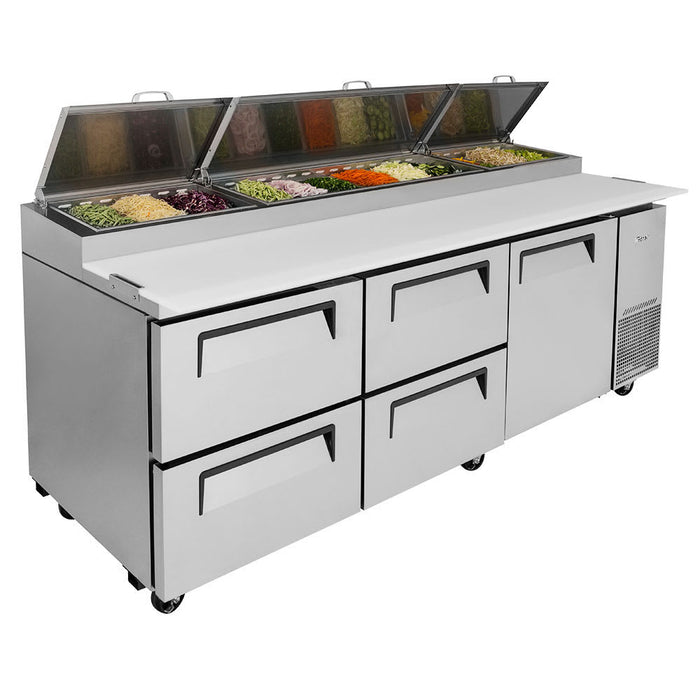

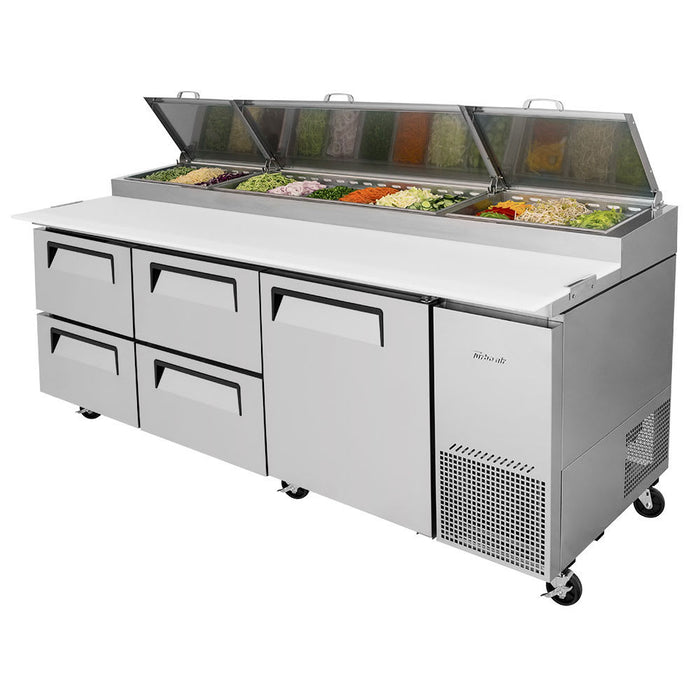

The top compartment of the Turbo Air TPR-93SD-D4-N pizza prep table holds 12 third-size, 6-inch-deep condiment pans. Cold air flows around the top, bottom, front, and rear of the top pan compartment, which keeps ingredients at food-safe temperatures under 41 degrees Fahrenheit. Since the top compartment is separated from the cabinet interior, spilled ingredients are contained in the compartment. Additional ingredients can be stored in the refrigerated base, which has four drawers and a cabinet. Each drawer holds 12 sixth-size, 6-inch-deep pans, and the cabinet section has two shelves. Pizzas can be assembled on the high-density cutting board, which covers the full width of the table and measures 19 1⁄4 inches dep by 1⁄2 inch thick.
The Turbo Air TPR-93SD-D4-N pizza prep table has a self-contained refrigeration system that uses environmentally friendly R-290 refrigerant. Because this type of refrigeration system keeps each of the components in one place, the unit is simple to install. It is also side-mounted, so the system can be easily accessed for maintenance. Dust is automatically brushed away from the self-cleaning condenser multiple times a day to prevent accumulation that can cause system failures.
Ideal for sandwich shops, pizzerias, and salad bars needing chilled ingredient storage directly on the prep line.
Specifications
| Spec Attribute |
Spec Value |
| Manufacturer |
Turbo Air |
| Cutting Board Depth (in) |
19.25 |
| Depth (in) |
36.25 |
| Front Access |
Door/Drawer |
| Height (in) |
42.13 |
| Hertz |
60 |
| Max Pan Depth (in) |
6 |
| NEMA |
5-15P |
| No. of Doors |
1 |
| Phase |
1 |
| Product |
Prep Tables |
| Product Type |
Commercial Refrigeration |
| Rating |
Better |
| Refrigerant |
R290 (Hydrocarbon) |
| Series |
Super Deluxe |
| Special Features |
Casters Included - Uninstalled |
| Type |
Standard |
| Use |
Pizza |
| Voltage |
115 |
| Warranty |
5-year Parts & Labor; 7-year Compressor Parts |
| Width (in) |
93 |
| Weight |
722.00 |
Product Details
- Top compartment accommodates 12 third-size, 6-in.-deep condiment pans (Pans included)
- Cold bunker system circulates air around the top, bottom, front, and rear of the top compartment, holding ingredients in pans at food safe temperatures
- Insulated cover prevents cold air loss in pan compartment
- Top pan compartment is isolated from the cabinet interior to prevent messes
- 4 drawers are made of stainless steel for corrosion resistance and simple cleanup
- Each drawer holds 12 sixth-size, 6-in.-deep pans (Drawer pans are sold separately)
- Cabinet compartment has 2 stainless steel shelves
- ABS door liner resists condensation buildup
- Interior is made of durable, corrosion-resistant stainless steel
- High-density polyethylene cutting board measures 19 1⁄4 in. W x 1⁄2 in. H
- Cutting board is easy to secure and remove with a side rail bracket
- Stainless and galvanized steel construction is heavy duty for commercial use
- 4-in. swivel casters have locks on the front set
- 115 V/60 Hz/1 ph, 11 A, 2⁄3 HP, 9-ft, cord with a NEMA 5-15P plug
- Overall Dimensions: 93 3⁄8 in. W x 36 1⁄4 in. D x 41 in. H
Warranty
5-year Parts & Labor; 7-year Compressor Parts
Documents
Self-contained Refrigeration System
- 33-41 degree F temperature range
- R-290 hydrocarbon refrigerant is environmentally friendly
- Self-contained system keeps all the components in one place for maintenance
- Easily access the side-mounted compressor
- Condenser is self-cleaning, so harmful dust accumulation is removed to prevent a system failure
- Durable evaporator coating resists corrosion
Important Notes
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Turbo Air TPR-93SD-D4-N within the 48 contiguous states.
Additional Product Information
NEMA 5-15P: This product comes with a NEMA 5-15P plug
Cord Attached: This product includes a cord and plug
Natural Refrigerant: Product made with Hydrocarbon Refrigerants
Food Pans Included: Food Pans are included with this item
Casters Not Installed: Ships with casters that must be installed by end user
Certifications
C ETL US Listed: Tested by Intertek & found compliant with applicable U.S. & Canadian safety standards
ETL-Sanitation: Meets applicable ANSI/NSF sanitation standards in testing by Intertek
