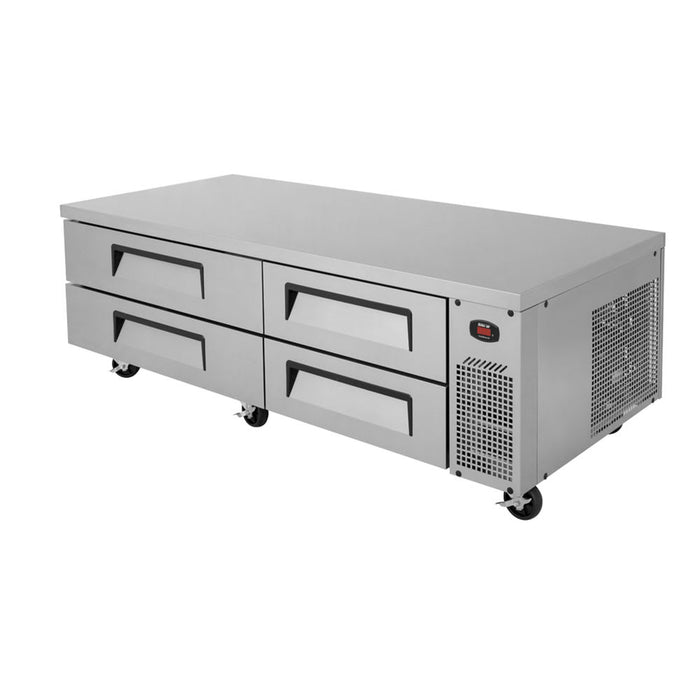

The Turbo Air TCBE-82SDR-N chef base has a stainless steel top that holds up to 1,192 pounds of equipment. Since the top is insulated, heat will not transfer from the equipment to the refrigerated cabinet. The four stainless steel drawers will accommodate a total of 60 sixth-size, 4-inch-deep pans. Ingredients stored in the refrigerated base are held at temperatures in a range from 33 to 38 degrees Fahrenheit. This refrigeration is made possible by a self-contained system that uses R-290 refrigerant. The digital display on the front panel allows operators to monitor the interior temperature. The refrigeration system also includes a patented self-cleaning condenser designed to prevent system failures caused by dust accumulation. The Turbo Air TCBE-82SDR-N chef base can be moved throughout your kitchen on 5-inch casters.
Excellent for grill stations and fast-paced kitchens needing refrigerated storage directly under countertop cooking equipment.
Specifications
| Manufacturer |
Turbo Air |
| Depth (in) |
33 |
| Height (in) |
25.25 |
| Hertz |
60 |
| NEMA |
5-15P |
| Number of Drawers |
4 |
| Phase |
1 |
| Product |
Chef Bases |
| Product Type |
Commercial Refrigeration |
| Rating |
Better |
| Refrigerant |
R290 (Hydrocarbon) |
| Sections |
2 |
| Series |
Super Deluxe |
| Special Features |
Casters Included - Uninstalled |
| Type |
Refrigerator |
| Voltage |
115 |
| Warranty |
5-year Parts & Labor, 7-year Compressor Parts |
| Width (in) |
83.63 |
| Weight |
469.00 |
Product Details
- 4 drawers can hold a total of 60 sixth-size, 4-in.-deep pans
- Countertop has a 1,192-lb. capacity
- Insulated top prevents heat transfers from equipment to the refrigerated cabinet
- One-piece, stainless steel construction is heavy duty and corrosion resistant
- Foamed-in-place polyurethane insulation creates structure
- 5-in.-dia. casters provide mobility for cleanup and maintenance
- 115 V/60 Hz/1 ph, 5.5 A, 1⁄4 HP, 9-ft. cord with a NEMA 5-15P plug
- Overall Dimensions: 83 5⁄8 in. W x 32 in. D x 26 1⁄2 in. H
Warranty
5-year Parts & Labor, 7-year Compressor Parts
Documents
Self-Contained Refrigeration System
- Maintains temperatures from 33-38 degrees F
- Easily monitor the temperature with the digital display on the front panel
- R-290 hydrocarbon refrigerant is environmentally friendly
- Self-cleaning device brushes dust from the condenser daily to reduce the risk of system failures
- Coating on the evaporator provides corrosion resistance
- Compressor is side mounted for accessibility when the system requires maintenance
- The self-contained refrigeration system allows for simple installation
Important Notes
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Turbo Air TCBE-82SDR-N within the 48 contiguous states.
Additional Product Information
Natural Refrigerant: Product made with Hydrocarbon Refrigerants
Casters Not Installed: Ships with casters that must be installed by end user
NEMA 5-15P: This product comes with a NEMA 5-15P plug
Cord Attached: This product includes a cord and plug
Food Pans Not Included: Food Pans are not included with this item
Certifications
C ETL US Listed: Tested by Intertek & found compliant with applicable U.S. & Canadian safety standards
ETL-Sanitation: Meets applicable ANSI/NSF sanitation standards in testing by Intertek
Super Deluxe Chef Base Refrigerator, 83-5/8"W x 32"D x 20-1/4"H, 16.04 cu. ft., side mounted self-contained refrigeration system, self-cleaning condenser device, (4) durable drawers with recessed handles, accommodates pans up to 6" deep, capacity: (3) full size pans per drawer (left side top & bottom) & (2) full size pans per drawer (right side top & bottom) (NOT included), 16 ga. stainless steel one-piece reinforced insulated top, stainless steel front & sides, digital temperature display, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 6.2 amps, NEMA 5-15P, cETLus, ETL-Sanitation
