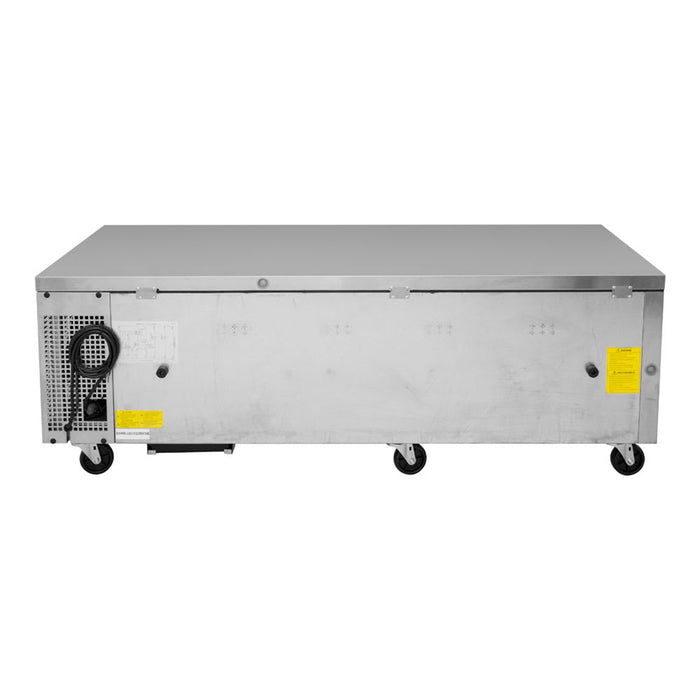

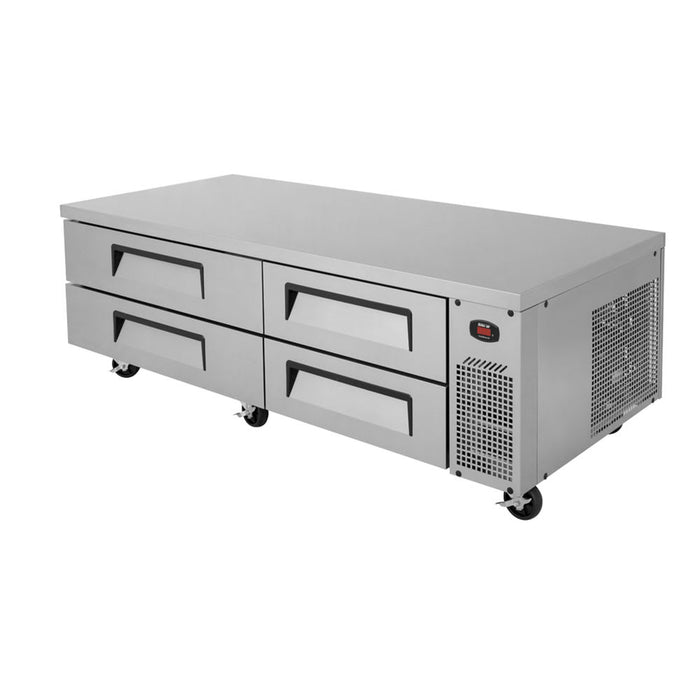

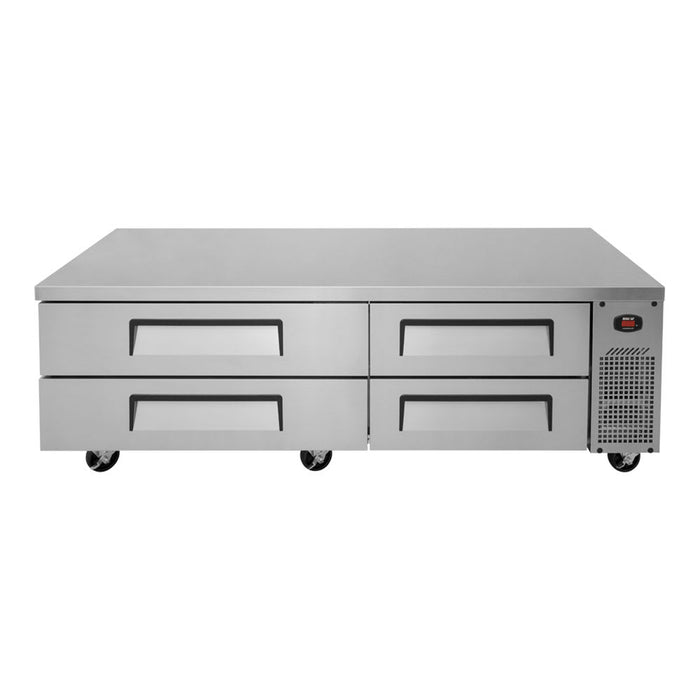

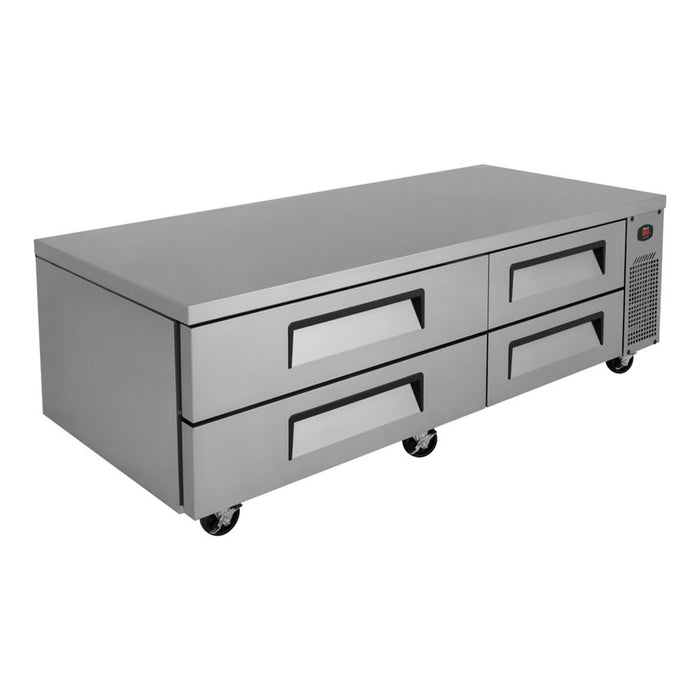

With a countertop that support as much as 788 pounds of equipment, the Turbo Air TCBE-72SDR-N chef base is built for long-lasting use. Its external digital display simplifies temperature monitoring, and the cabinet is fully insulated by high-density polyurethane insulation for energy efficiency. The self-cleaning condenser is constructed with a rotating brush that cleans dust accumulation off the mesh filter two to three times a day.
The Turbo Air TCBE-72SDR-N chef base refrigerator's side-mount compressor enables the unit to be serviced without moving it. This chef base comes with four strong drawers, each of which has a recessed handle to inhibit employee fatigue. Each drawer holds sixth-size pans, and altogether the unit can hold 48 pans. Facilitating cleaning, the front and sides are made of stainless steel, and the unit's casters measure 5 inches. It uses environmentally-friendly R290 hydrocarbon refrigerant.
Excellent for grill stations and fast-paced kitchens needing refrigerated storage directly under countertop cooking equipment.
Specifications
| Manufacturer |
Turbo Air |
| Depth (in) |
33 |
| Height (in) |
25.25 |
| Hertz |
60 |
| Kitchen Innovations Awards |
2016 |
| NEMA |
5-15P |
| Number of Drawers |
4 |
| Phase |
1 |
| Product |
Chef Bases |
| Product Type |
Commercial Refrigeration |
| Rating |
Better |
| Refrigerant |
R290 (Hydrocarbon) |
| Sections |
2 |
| Series |
Super Deluxe |
| Special Features |
Casters Included - Uninstalled |
| Type |
Refrigerator |
| Voltage |
115 |
| Warranty |
5-year Parts & Labor, 7-year Compressor Parts |
| Width (in) |
72 |
| Weight |
418.00 |
Product Details
- Corrosion-resistant evaporator coating
- Self-contained system
- 5-in.-diameter swivel casters
- 4 drawers
- Countertop supports as much as 788 lbs.
- Durable stainless steel can be wiped clean
- External digital temperature display
- Insulated with high-density polyurethane
- Self-cleaning condenser
- Side-mount compressor facilitates servicing
Warranty
5-year Parts & Labor, 7-year Compressor Parts
Documents
Dimensions & Utilities
- 72 in. W x 32 in. D x 25.25 in. H
- 3.4 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, NEMA 5-15P plug
Important Notes
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Turbo Air TCBE-72SDR-N within the 48 contiguous states.
Additional Product Information
Natural Refrigerant: Product made with Hydrocarbon Refrigerants
Casters Not Installed: Ships with casters that must be installed by end user
NEMA 5-15P: This product comes with a NEMA 5-15P plug
Cord Attached: This product includes a cord and plug
Food Pans Not Included: Food Pans are not included with this item
Kitchen Innovations Awards 2016: This product was recognized with a 2016 Kitchen Innovations Award from the National Restaurant Association.
Certifications
C ETL US Listed: Tested by Intertek & found compliant with applicable U.S. & Canadian safety standards
ETL-Sanitation: Meets applicable ANSI/NSF sanitation standards in testing by Intertek
Super Deluxe Chef Base Refrigerator, 72"W x 32"D x 20-1/4"H, 12.66 cu. ft., side mounted self-contained refrigeration system, self-cleaning condenser device, (4) durable drawers with recessed handles, accommodates pans up to 6" deep, capacity: (2) full size pans per drawer (NOT included), 16 ga. stainless steel one-piece reinforced insulated top, stainless steel front & sides, digital temperature display, R290 Hydrocarbon refrigerant, 1/4+ HP, 115v/60/1-ph, 5.6 amps, NEMA 5-15P, cETLus, ETL-Sanitation
