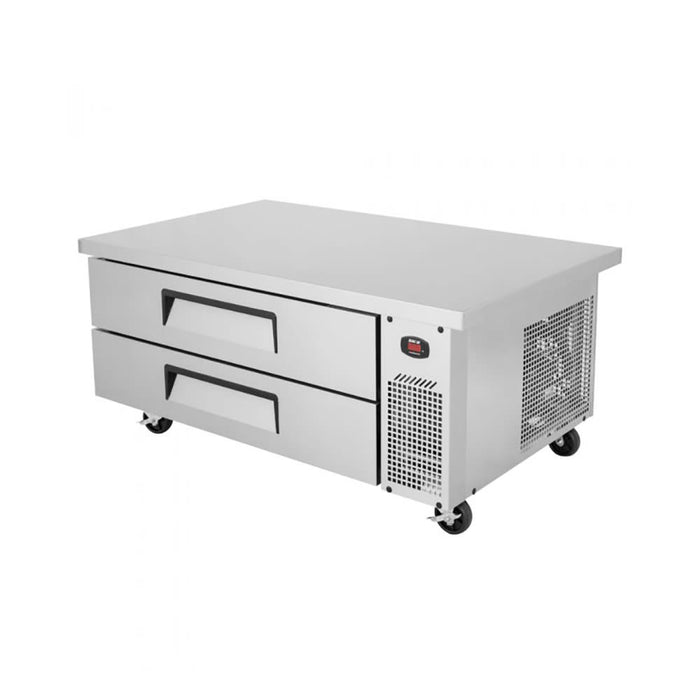

Designed to accommodate heavy countertop equipment, the Turbo Air TCBE-52SDR-E-N Super Deluxe chef base includes a reinforced one-piece stainless steel top that supports up to 788 pounds. Its extended surface is insulated to reduce heat transfer into the refrigerated cabinet. The two stainless steel drawers each hold up to three full-size pans up to 6 inches deep (pans not included) and feature recessed handles for ease of use. Mounted on 4-inch swivel casters, this unit is easy to move and secure for cleaning or repositioning.
Built with high-density foamed-in-place polyurethane insulation, the Turbo Air TCBE-52SDR-E-N chef base helps retain cold air and improve energy efficiency. The side-mounted, self-contained refrigeration system uses R290 hydrocarbon refrigerant and maintains temperatures between 33 and 38 degrees Fahrenheit. A front-mounted digital temperature display provides quick visibility for monitoring conditions. The self-cleaning condenser automatically clears dust buildup to prevent coil obstruction, while the anti-corrosion coated evaporator supports long-term reliability.
Excellent for grill stations and fast-paced kitchens needing refrigerated storage directly under countertop cooking equipment.
Specifications
| Manufacturer |
Turbo Air |
| Depth (in) |
33 |
| Height (in) |
25.25 |
| Hertz |
60 |
| NEMA |
5-15P |
| Number of Drawers |
2 |
| Phase |
1 |
| Product |
Chef Bases |
| Product Type |
Commercial Refrigeration |
| Rating |
Better |
| Refrigerant |
R290 (Hydrocarbon) |
| Sections |
1 |
| Series |
Super Deluxe |
| Special Features |
Casters Included - Uninstalled |
| Type |
Refrigerator |
| Voltage |
115 |
| Warranty |
5-year Parts & Labor, 7-year Compressor Parts |
| Width (in) |
58.25 |
| Weight |
329.00 |
Product Details
- Part of the Super Deluxe series
- 9.1-cu. ft. internal capacity
- Stainless steel front and sides
- Reinforced stainless steel top, 1-piece design
- Top insulated to minimize heat transfer
- 2 stainless steel drawers with recessed handles
- Each drawer fits 3 full-size pans up to 6 in. deep (pans not included)
- Top supports up to 788 lbs. of equipment
- 4-in. swivel casters
Warranty
5-year Parts & Labor, 7-year Compressor Parts
Documents
Refrigeration System
- Self-contained
- Side mounted
- Front-breathing design
- R290 hydrocarbon refrigerant
- Self-cleaning condenser
- Anti-corrosion coated evaporator
- Digital temperature display
- Temperature holding range: 33-38 degrees F
Dimensions & Utilities
- 58 1⁄4 in. W x 32 in. D x 20 1⁄4 in. H
- 5.1 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug
Important Notes
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Turbo Air TCBE-52SDR-E-N within the 48 contiguous states.
Additional Product Information
Natural Refrigerant: Product made with Hydrocarbon Refrigerants
Casters Not Installed: Ships with casters that must be installed by end user
NEMA 5-15P: This product comes with a NEMA 5-15P plug
Cord Attached: This product includes a cord and plug
Food Pans Not Included: Food Pans are not included with this item
Certifications
C ETL US Listed: Tested by Intertek & found compliant with applicable U.S. & Canadian safety standards
ETL-Sanitation: Meets applicable ANSI/NSF sanitation standards in testing by Intertek
Super Deluxe Extended Top Chef Base Refrigerator, 58-1/4"W x 32"D x 20-1/4"H, 9.1 cu. ft., side mounted self-contained refrigeration system, self-cleaning condenser device, (2) durable drawers with recessed handles, accommodates pans up to 6" deep, capacity: (3) full size pans per drawer (NOT included), 16 ga. stainless steel one-piece reinforced insulated top, stainless steel front & sides, digital temperature display, R290 Hydrocarbon refrigerant, 1/4+ HP, 115v/60/1-ph, 5.1 amps, NEMA 5-15P, cETLus, ETL-Sanitation
