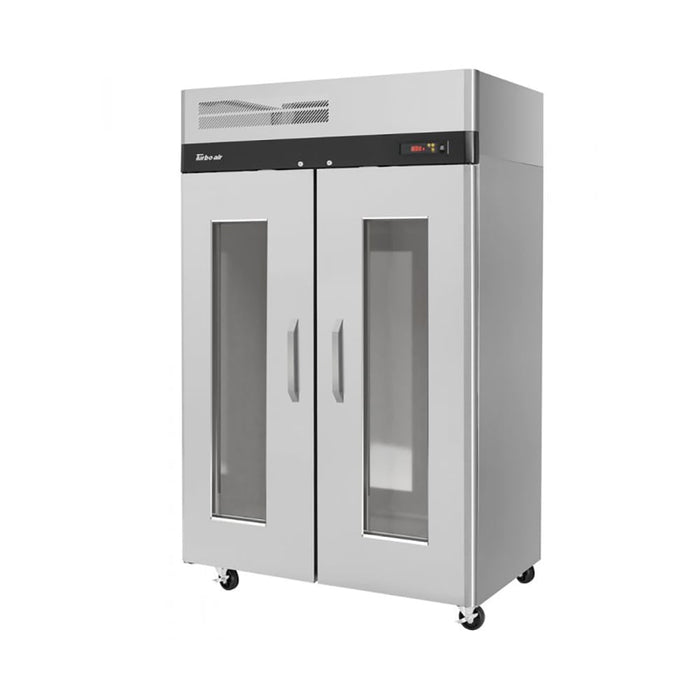

This Turbo Air M3H47-2-G-TS glass door heated cabinet is a two-section unit measuring 51 3⁄4 inches wide by 32 1⁄8-inch-deep by 83 inches high. Each section is equipped with a corresponding stainless steel door featuring a glass window that provides a view into the LED-lighted interior. When opened, these doors provide direct access to the 10 stainless steel universal tray slides, and if the doors aren't then closed properly, an alarm beeps to alert operators. Made of rugged stainless steel, the unit's interior and exterior resist rust, corrosion, and wear, facilitate cleaning, and are capable of surviving long-term back-of-house use. For user safety, its edges and corners are rounded, and this cabinet is outfitted with swivel casters—two of which lock—for mobility and stability.
To hold precooked dishes at safe temperatures before serving, the Turbo Air M3H47-2-G-TS reach-in heated cabinet's digital temperature control system can be set from 140 to 180 degrees Fahrenheit. This system maintains consistent temperatures, and this temperature can be monitored on the digital display. To maintain desired temperature within the food zone, the cabinet uses a ducted fan air distribution system. High-density polyurethane insulation is foamed in place into the cabinet to retain produced temperatures and minimize energy loss.
Perfect for catering companies, banquet halls, and hotels needing to transport and hold prepared foods at safe serving temperatures.
Specifications
| Manufacturer |
Turbo Air |
| Application |
Heat Only |
| Color |
Silver |
| Construction |
Stainless Steel |
| Control Location |
Top |
| Controls |
Digital |
| Cubic Feet |
42.9 |
| Depth (in) |
32.13 |
| Door Design |
Full |
| Door Type |
Glass |
| Heat |
Electric |
| Height (in) |
83 |
| Hertz |
60 |
| Hinge Configuration |
Left/Right |
| kW |
1.55 |
| Load Type |
Reach In |
| NEMA |
5-15P |
| No. of Doors |
2 |
| Pan Capacity |
10 |
| Phase |
1 |
| Product |
Heated Cabinets |
| Product Type |
Food Warming Equipment |
| Sections |
2 |
| Series |
M3 |
| Size |
Full Height |
| Slide Type |
Universal |
| Type |
Insulated |
| Voltage |
115 |
| Warranty |
3-year Parts & Labor |
| Width (in) |
51.75 |
| Weight |
367.00 |
Product Details
- Part of the M3 series
- Interior volume: 42.9 cu. ft.
- Full-height, reach-in unit
- 2 sections
- Resilient, rust- and corrosion-resistant stainless steel exterior and interior
- Sturdy grille design
- (4) 4-in.-diameter casters with lockable front casters
- CFC-free, foamed-in-place, high-density polyurethane insulation
- Rounded edges and corners for operator safety
- 2 hinged, lockable stainless steel doors with glass windows
- 1-piece magnetic door gaskets are replaceable
- LED interior lighting
- 10 universal tray slides
- Each tray slide accommodates (1) 6-in.-deep full-size pan, (1) 18-in. x 26-in. pans, (2) 14-in. x 18-in. pans, or (3) 12-in. x 20-in. pans
- Operating temperature range: 140-180 degrees F
- Ducted fan air distribution system
- Digital temperature control and monitor system
- Alarm sounds if doors aren't shut properly
- Digital display
- On/off switch on control panel
Warranty
3-year Parts & Labor
Documents
Dimensions & Utilities
- Interior: 45 1⁄4 in. W x 25 1⁄8 in. D x 58 3⁄4 in. H
- Overall: 51 3⁄4 in. W x 32 1⁄8 in. D x 83 in. H
- 13.5 A, 1550 W
- 115 V/60 Hz/1 ph, includes 8-ft. cord with NEMA 5-15P plug
Important Notes
*Image may not depict product color, inclusions or accessories.
*Free shipping on Turbo Air M3H47-2-G-TS within the 48 contiguous states.
Additional Product Information
NEMA 5-15P: This product comes with a NEMA 5-15P plug
Cord Attached: This product includes a cord and plug
Digital Controls: Digital displays are easy to use & see at a distance
Heat Only: Dry heat for warming items not requiring humidity
Insulated: Conserves energy and maintains cool-to-touch exterior
Full Height: Full-height design maximizes capacity in a single footprint
Full Doors: Doors spanning full height of unit allow for easy access to the entire cabinet
Certifications
ETL US Listed: Tested by Intertek & found compliant with applicable U.S. safety standards
ETL-Sanitation: Meets applicable ANSI/NSF sanitation standards in testing by Intertek
