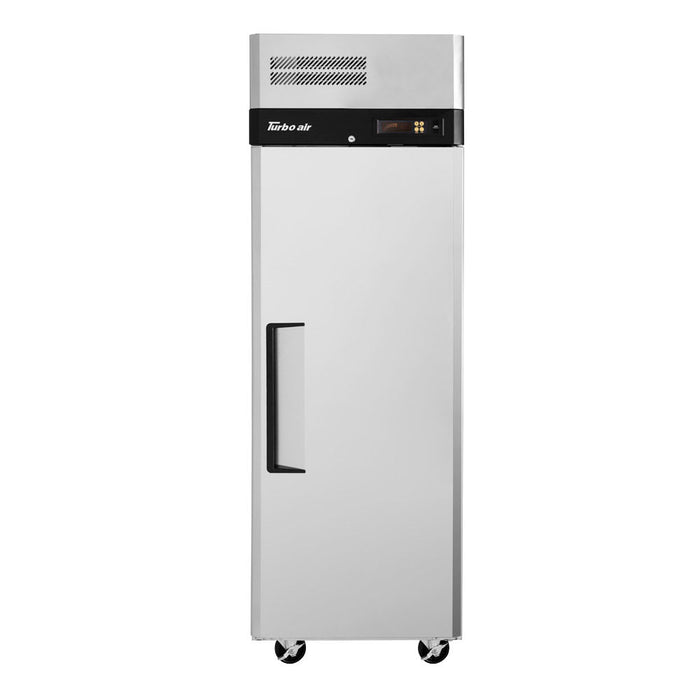

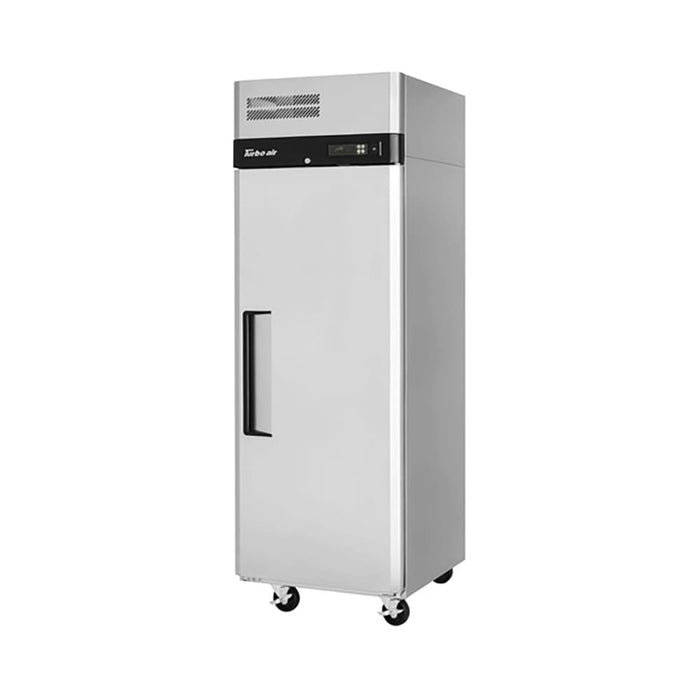

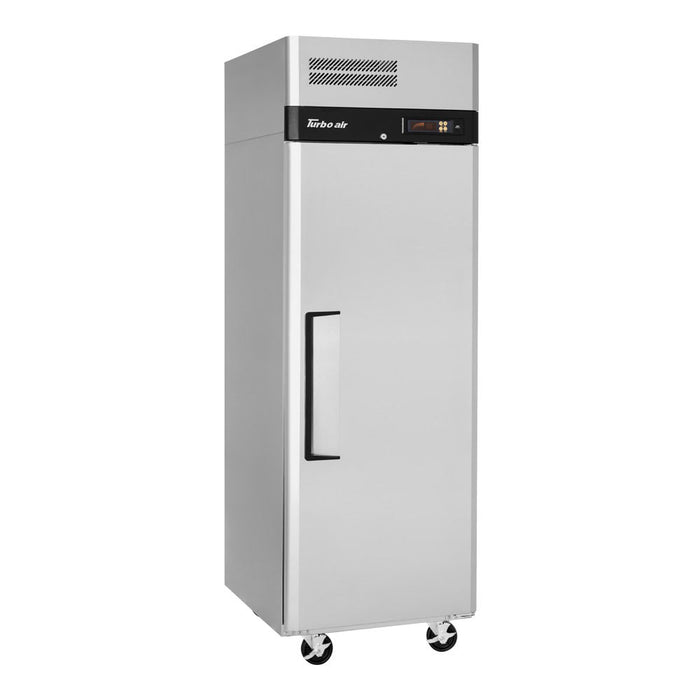

The Turbo Air M3F24-1-N single-section reach-in freezer has three 24-inch-by-23 1⁄2-inch shelves. Product stored on the shelves is visible with LED interior lights. The interior of this M3 Turbo Air freezer is made of aluminum, so it is corrosion, scratch, and dent resistant, while the stainless steel floor is easy to clean and heavy duty. The vacuum pressure in the door when opening is eliminated by a pressure relief device.
Innovative technology with the digital control system makes it easy to use the Turbo Air M3F24-1-N one-section reach-in freezer. With the Turbo Freeze feature, the compressor can run continuously for 2 hours to rapidly bring down temperatures in the cabinet. A smart defrost system activates only when it is needed, so energy is not wasted and contents are kept safe. Warm air is not sucked into cabinet since the automatic fan motor delay shuts off the fan when the door opens.
Great for restaurants and bakeries needing long-term frozen storage for meats, seafood, and dough.
Specifications
| Spec Attribute |
Spec Value |
| Manufacturer |
Turbo Air |
| Compressor Location |
Top |
| Cubic Feet |
21.6 |
| Depth (in) |
32.75 |
| Door Design |
Full |
| Door Type |
Solid |
| Height (in) |
83 |
| Hertz |
60 |
| Hinge Configuration |
Right |
| Interior Material |
Aluminum |
| NEMA |
5-15P |
| Phase |
1 |
| Product |
Reach-In Freezers |
| Product Type |
Commercial Refrigeration |
| Rating |
Better |
| Refrigerant |
R290 (Hydrocarbon) |
| Sections |
1 |
| Series |
M3 |
| Type |
Reach In |
| Voltage |
115 |
| Warranty |
5-year Parts & Labor, 7-year Compressor Parts |
| Width (in) |
28.75 |
| Weight |
280.00 |
Product Details
- Part of the M3 Turbo Air freezer series
- 3 polyethylene-coated shelves are adjustable to work well with different sizes of product
- LED lights enhance visibility in the cabinet
- Heavy-duty aluminum interior and a stainless steel floor are easy to clean
- CFC-free, foamed-in-place polyurethane insulation provides structural stability
- Pressure relief device eliminates vacuum pressure in the door
- Door lock prevents unauthorized cabinet access
- Door is reversible in the field to accommodate different layouts
- Strength is provided by the stainless and galvanized steel exterior
- Sharp corners and edges have been rounded to eliminate risk of injury
- Front set on the 4-in. swivel casters has locks for stability
Warranty
5-year Limited Parts & Labor; 7-year Compressor Parts
Documents
Self-contained Refrigeration System
- Temperature holding range: -10 to 0 degrees F
- R290 hydrocarbon refrigerant is used to keep the cabinet temperature cold
- Top-mounted system houses all the components, making installation and maintenance simple

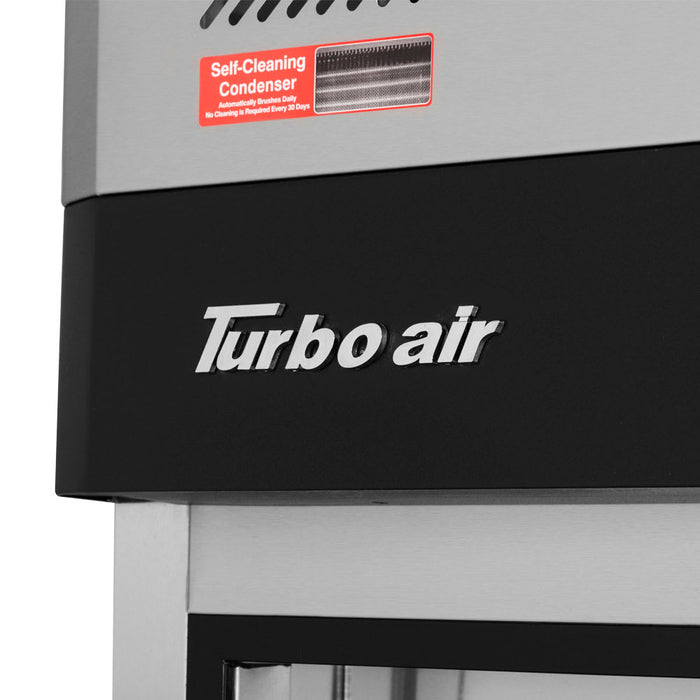

- Self-cleaning device removes harmful dust buildup from the condenser
- Evaporator resists corrosion with a coating

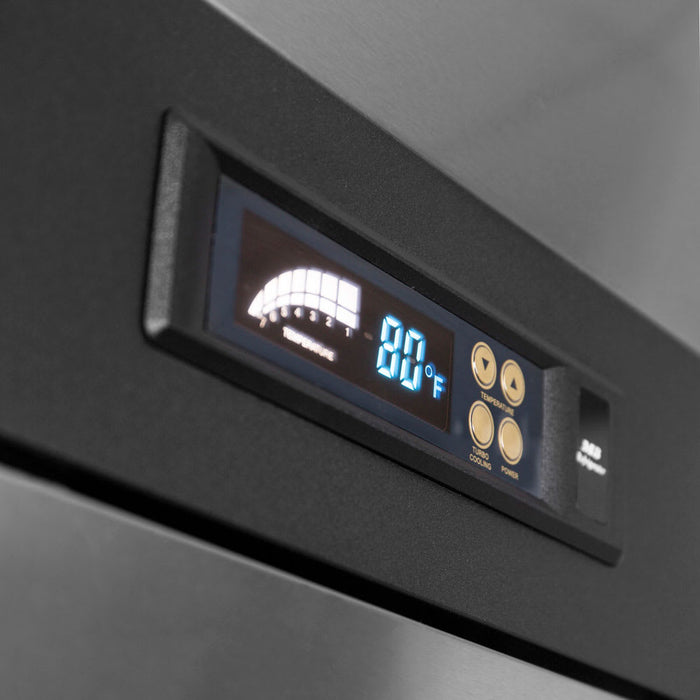

Digital Control System
- Temperature display offers a digital readout for monitoring
- Turbo Freeze function enables the compressor to run continuously for 2 hrs. for rapid cabinet cooling
- Smart defrost system activates only when it is needed, saving energy and keeping the product safe
- Automatic fan motor delay shuts off the fan when the door opens to keep warm air out of the cabinet
- Door alarm notifies staff if the door is not properly shut
- Early warning alarm program helps prevent malfunctions by detecting issues
- Refrigeration system condition is interpreted by the self-diagnosis program
Dimensions & Utilities
- Shelves: 24 in. W x 23 1⁄2 in. D
- Interior: 24 3⁄4 in. W x 26 1⁄2 in. D x 60 5⁄8 in. H
- Overall: 28 3⁄4 in. W x 32 3⁄4 in. D x 83 in. H
- 4.4 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
Important Notes
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Turbo Air M3F24-1-N within the 48 contiguous states.
Additional Product Information
Natural Refrigerant: Product made with Hydrocarbon Refrigerants
NEMA 5-15P: This product comes with a NEMA 5-15P plug
Cord Attached: This product includes a cord and plug
Full Doors: Doors spanning full height of unit allow for easy access to the entire cabinet
Certifications
C ETL US Listed: Tested by Intertek & found compliant with applicable U.S. & Canadian safety standards
ETL-Sanitation: Meets applicable ANSI/NSF sanitation standards in testing by Intertek
ENERGY STAR: This product meets energy efficiency standards set by ENERGY STAR
